Creating BIP Reports in Oracle Fusion Cloud

What is BIP?

BI Publisher (BIP) is a reporting tool in Oracle Fusion used to create custom reports using SQL and templates (like PDF, Excel, RTF).

Step-by-Step Process:

  • Login to Oracle Fusion Cloud
  • Use your credentials to sign in.
  • Make sure your user has the BI Administrator role.

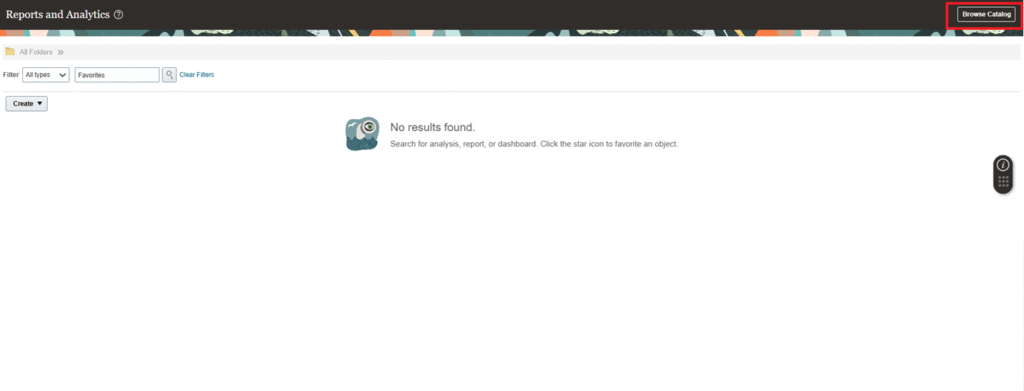

  • Click on Reports and Analytics.

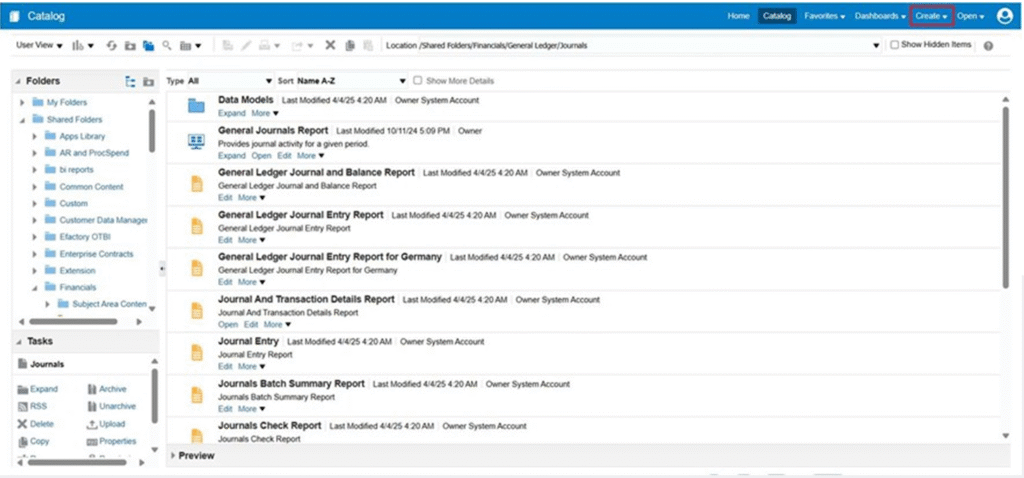

  • Navigate to ‘Browse Catalog’ to access existing reports and initiate the creation of new reports.
  • Click on Create Button.

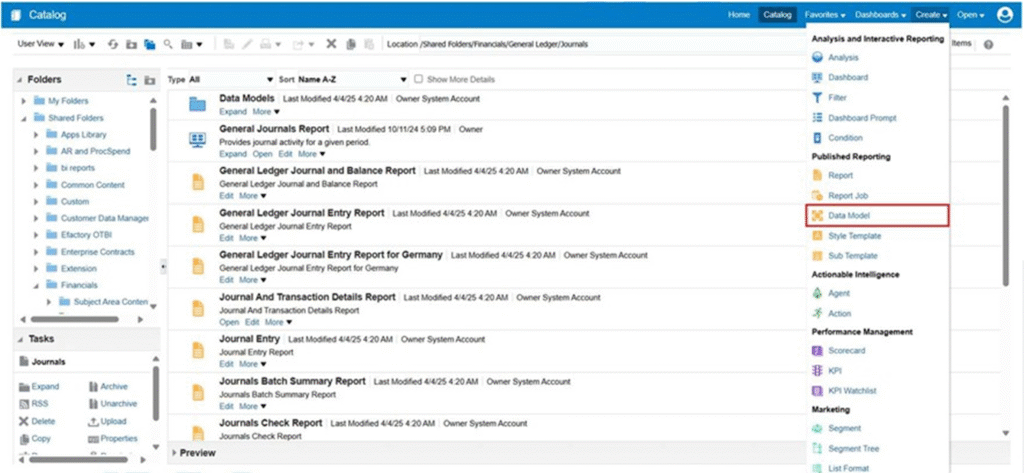

  • Click on ‘Data Model’ to write the SQL query for retrieving data.
  • Click on ‘New Data Set’.

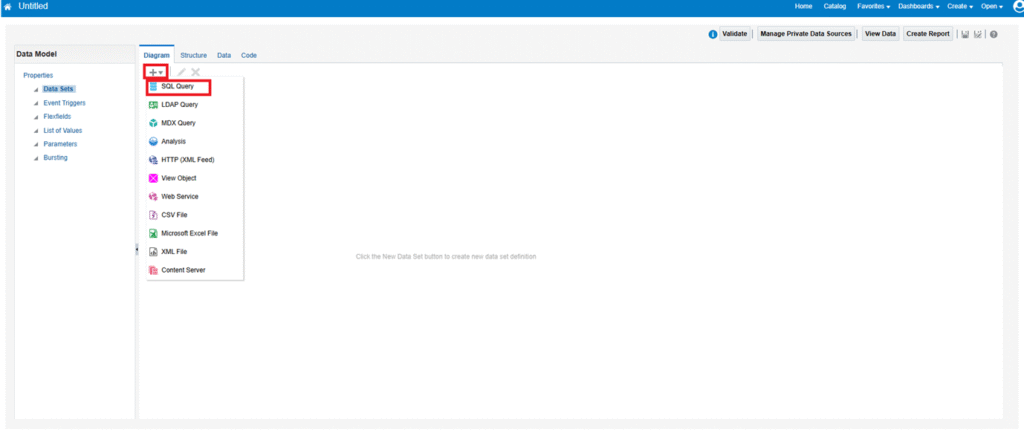

  • Select ‘SQL Query’ to write the SQL query within the Data Model.
  • Enter the Data Model Name ‘AP_Invoice_Details’.
  • Select the Data Source as ‘ApplicationDB_FSCM’.
  • Choose the SQL Type as ‘Standard SQL’.
  • Write the SQL query in the SQL Query section.
  • Once the query is complete, click OK to proceed

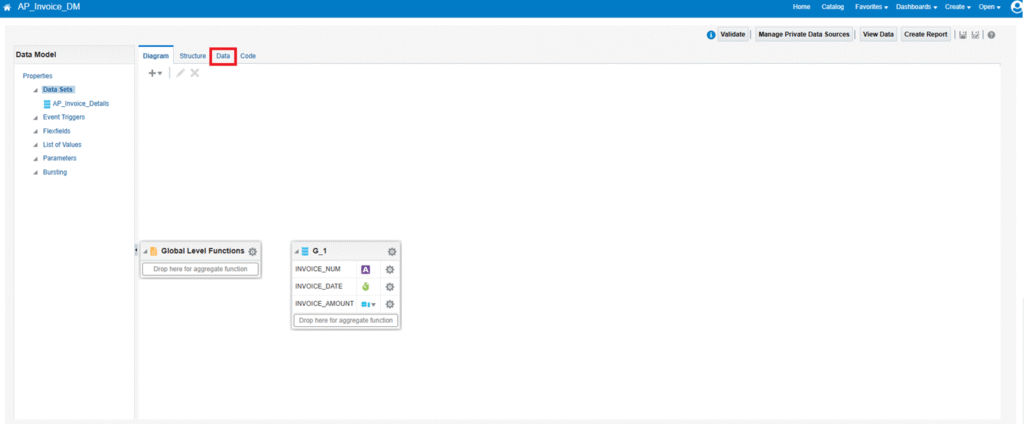

  • G_1 is the name of the Data Set.
  • Click on ‘Data’ or ‘View Data’ to preview the data retrieved by the SQL query.

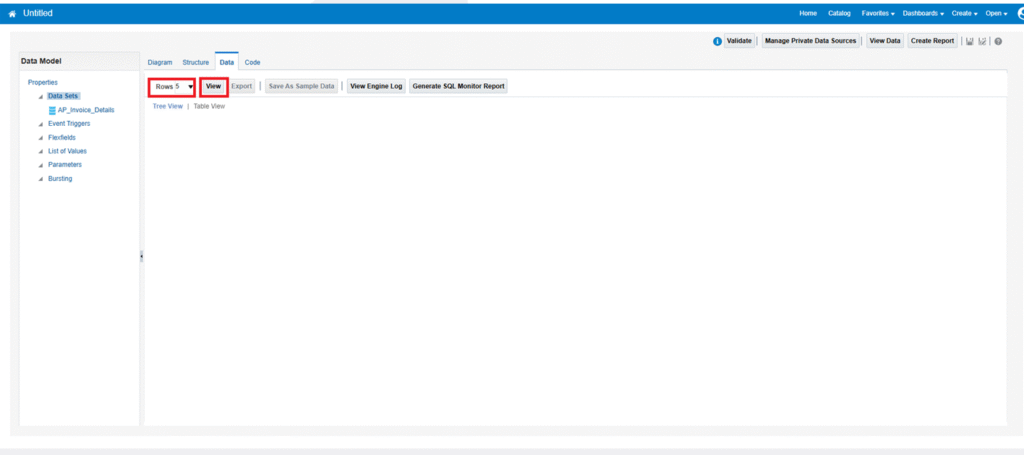

  • Select the number of ‘Rows’ to fetch. You can select a maximum of 200 rows.
  • Click on ‘View’ to see the retrieved data.
  • There are two viewing options: ‘Tree View’ and ‘Table View’.

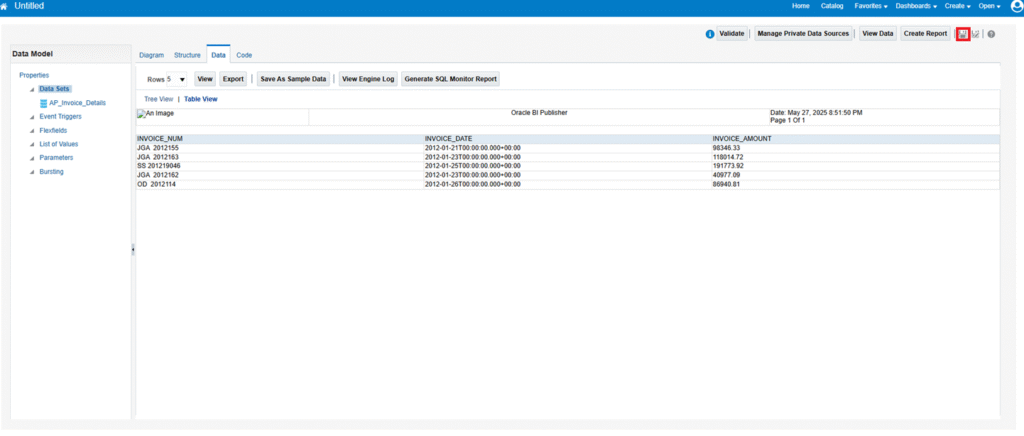

  • Click on ‘Table View’ to display the data in a tabular format.
  • There are two viewing options: ‘Tree View’ and ‘Table View’.
  • Click on ‘Table View’ to display the data in a tabular format.
  • In the Name section, enter the Data Model name ‘Invoice Details DM’.
  • Then click the ‘OK’ button to save the Data Model.
  • In the Name section, enter the Data Model name ‘AP_Invoice_Details’.
  • Then click the ‘OK’ button to save the Data Model.

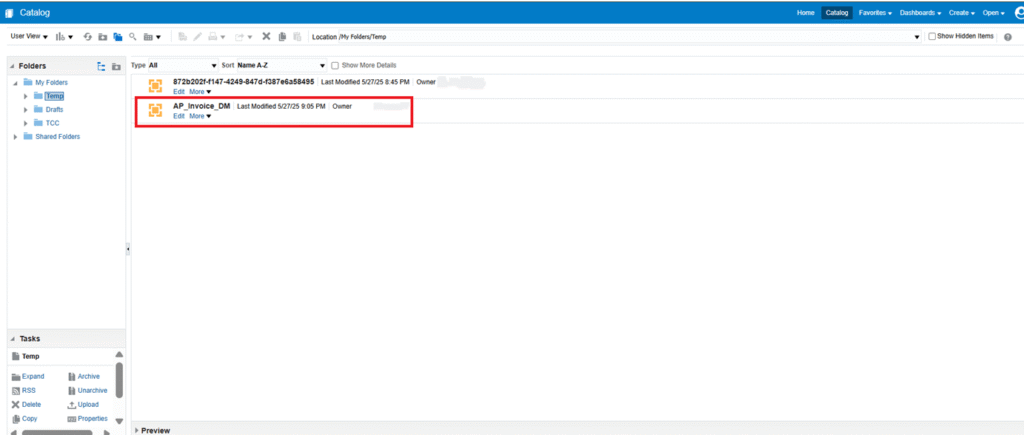

  • The Data Model has been saved successfully.
  • Click on the ‘Edit’ button to create and design the report layout.
  • Click on ‘Data’.
  • Click on ‘View’.

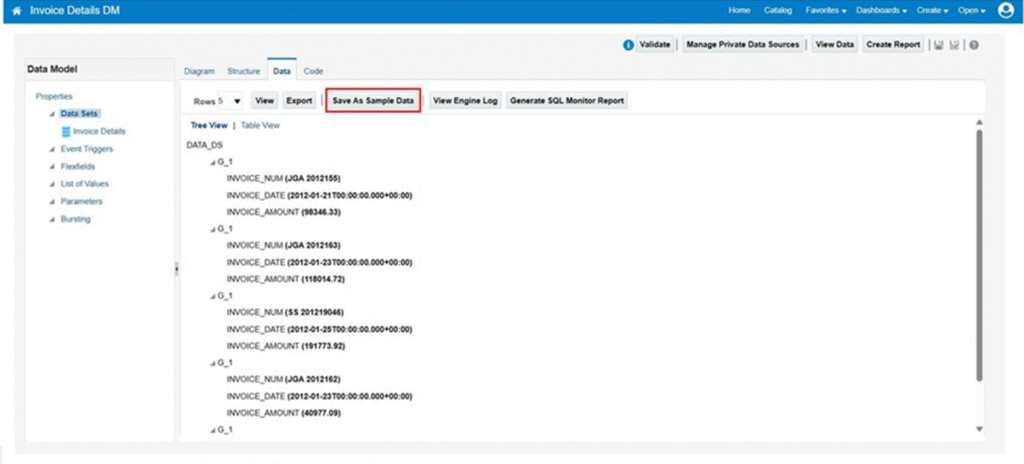

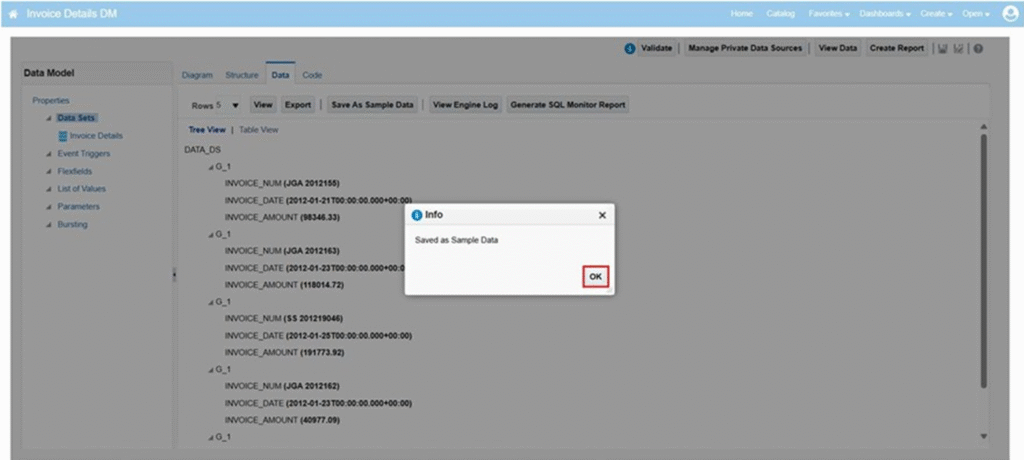

  • Click on Save As Sample Data to Create Report.

Click on ‘OK’.

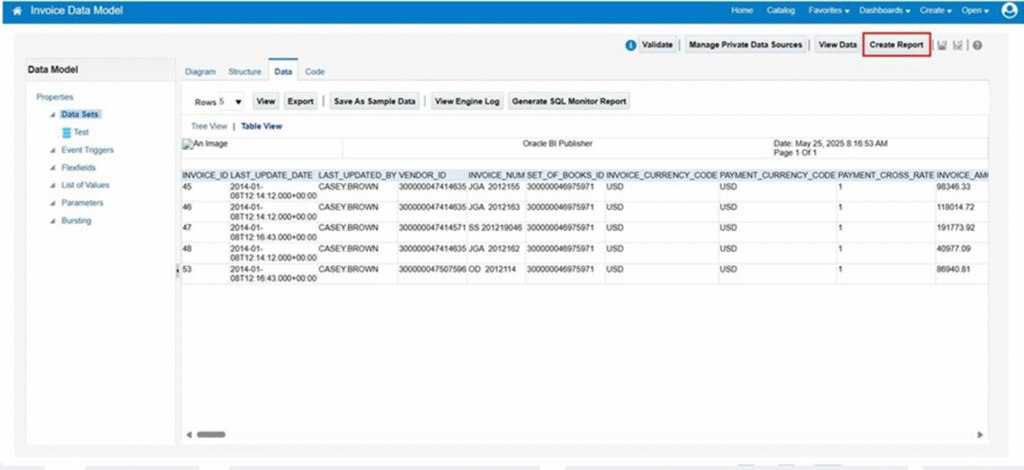

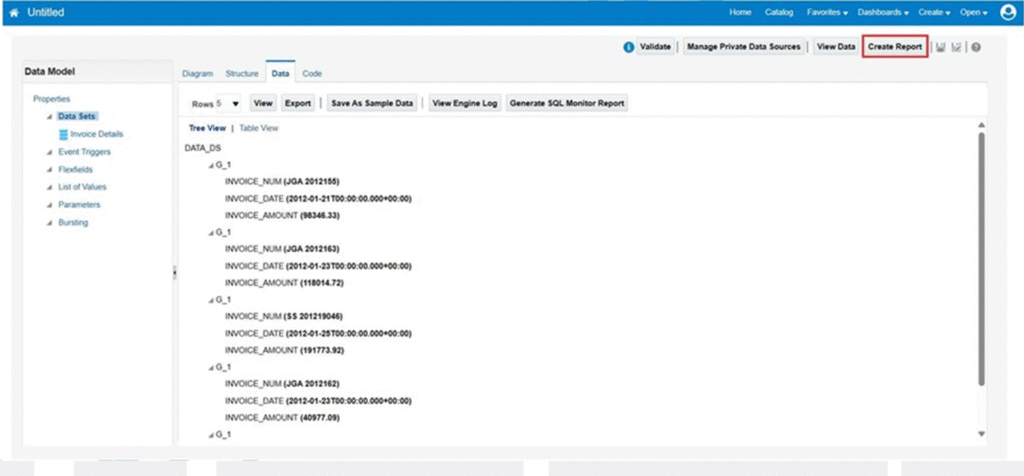

  • Click on ‘Create Report’.
  • Click on ‘Create Report’ to begin creating a new report.
  • Select ‘Use Report Editor’ to design the report layout.
  • Click on the ‘Finish’ button to proceed.
  • In the ‘Name’ section,enter the report name ‘Invoice Details Report’, then click ‘OK’ to proceed
  • There are two template options available:
  • Option 1: Upload a custom template such as RTF, Excel, or E-Text etc.
  • Option 2: Use the Standard Template provided by Oracle BI Publisher.

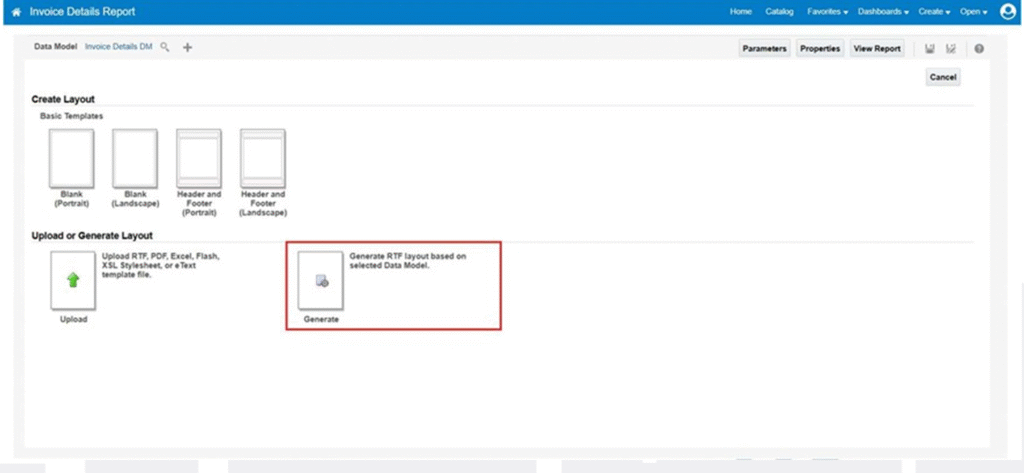

  • Click on ‘Generate RTF layout based on selected Data Model’
  • Enter Template Name ‘Invoice Details Report’.
  • Click on ‘Generate’.

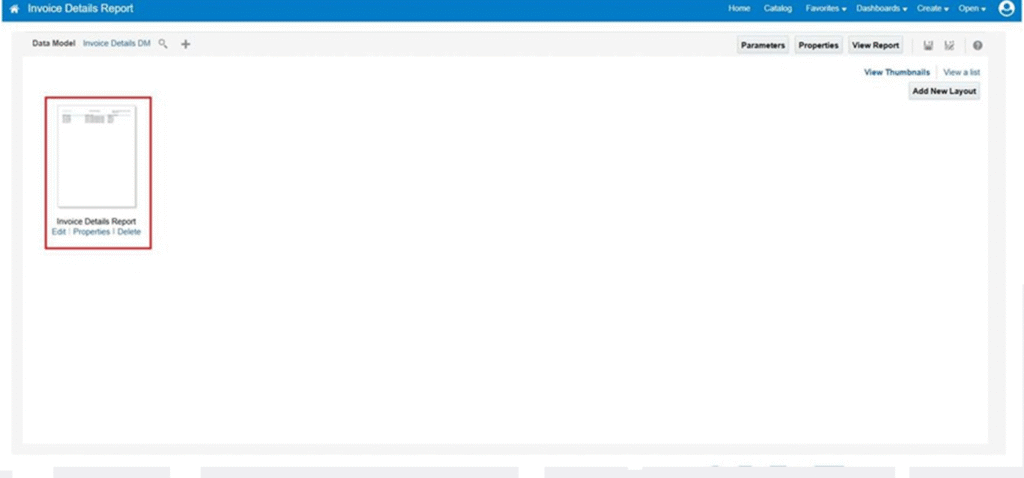

  • The layout is displayed in the image above.
  • Click on ‘View Report’ to preview the output based on the selected layout and data
  • The layout is displayed in the image above.
  • Click on ‘View Report’to preview the output based on the selected layout and data.
  • Click on ‘View Report’Button.

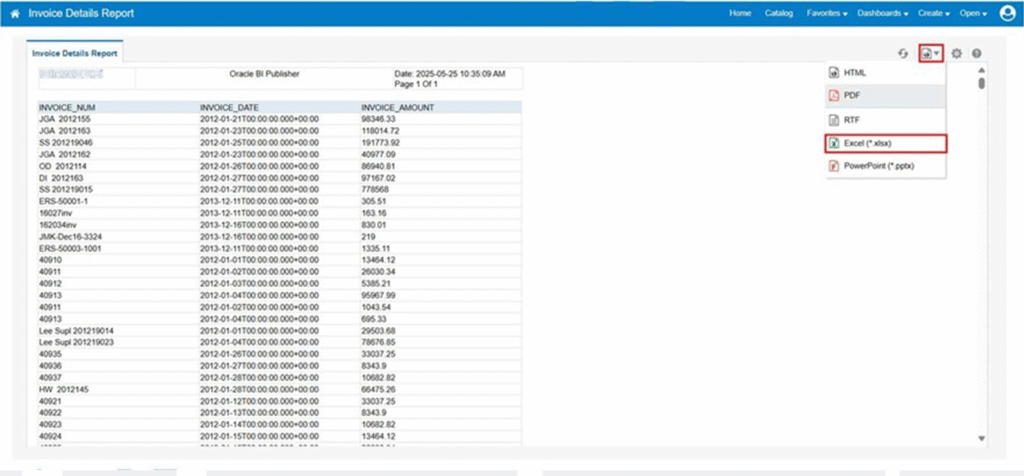

  • We have HTML, PDF, RTF, EXCEL, PowerPoint format output is available.
  • Click on ‘Excel’ to Download this report.

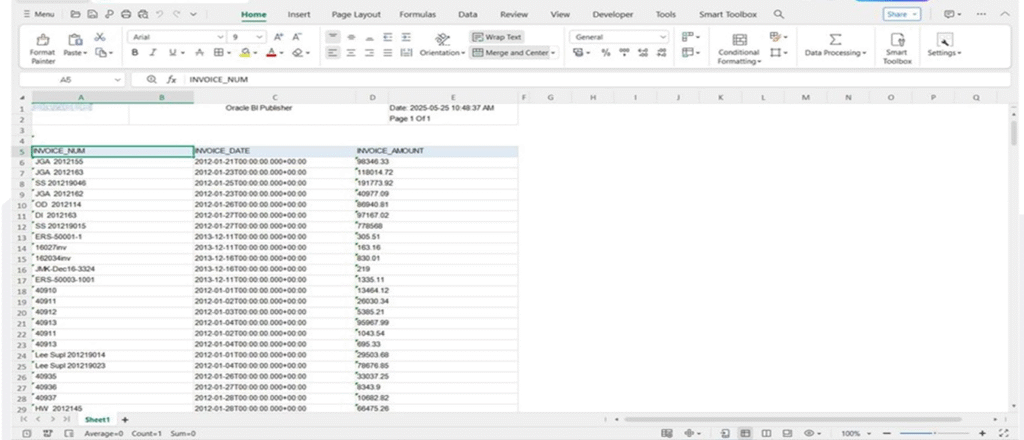

OUTPUT:
